Breadboard Transistor Radio Additional Pictures

Here are some pictures of the main circuit shown from various angles
which might help in the the construction process if the plan views are not completely clear.  You can click on the images for a bigger picture.

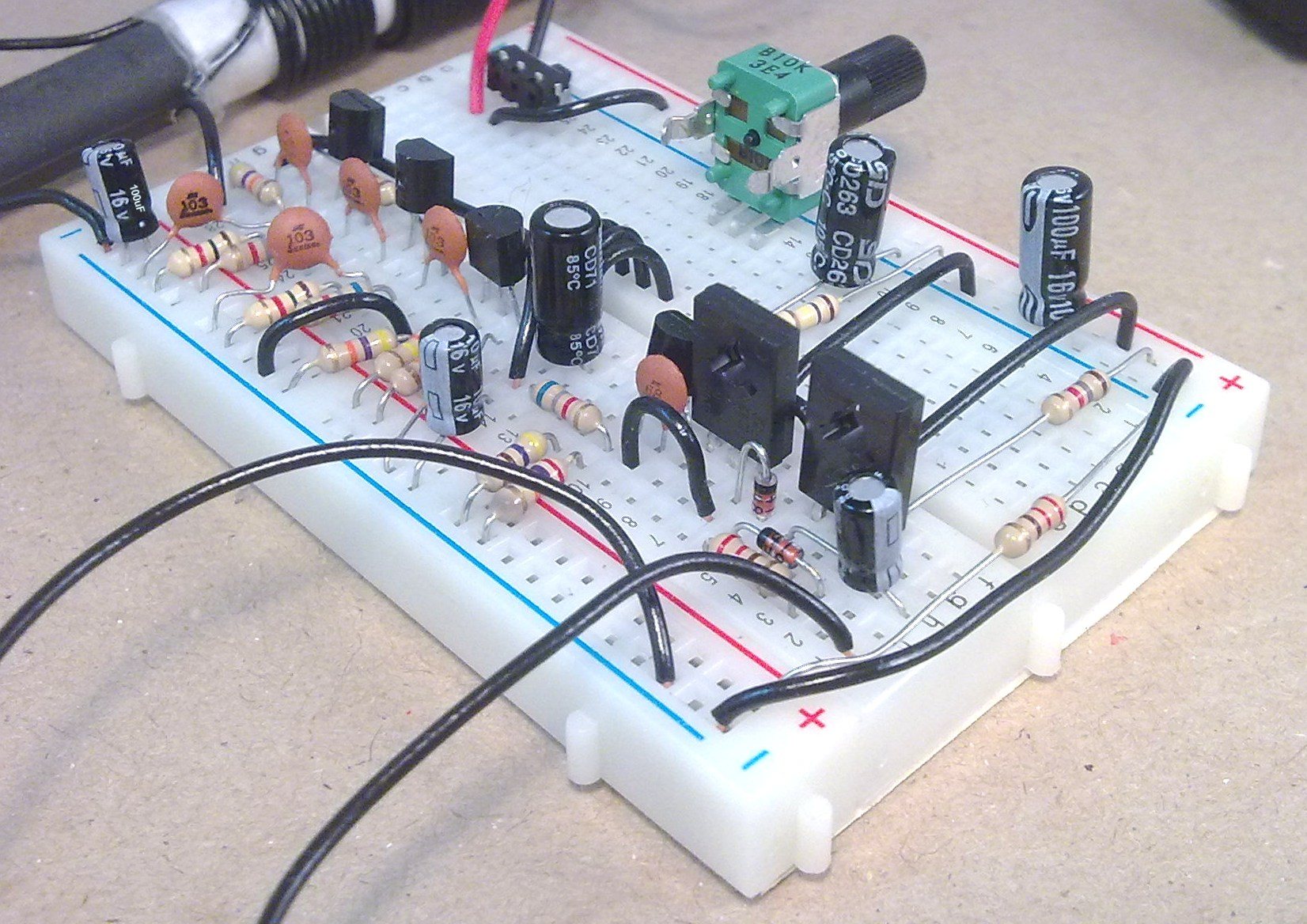

Breadboard TRF Radio South ViewBreadboard TRF Radio Detail View South-East

MW AM Prototype Board

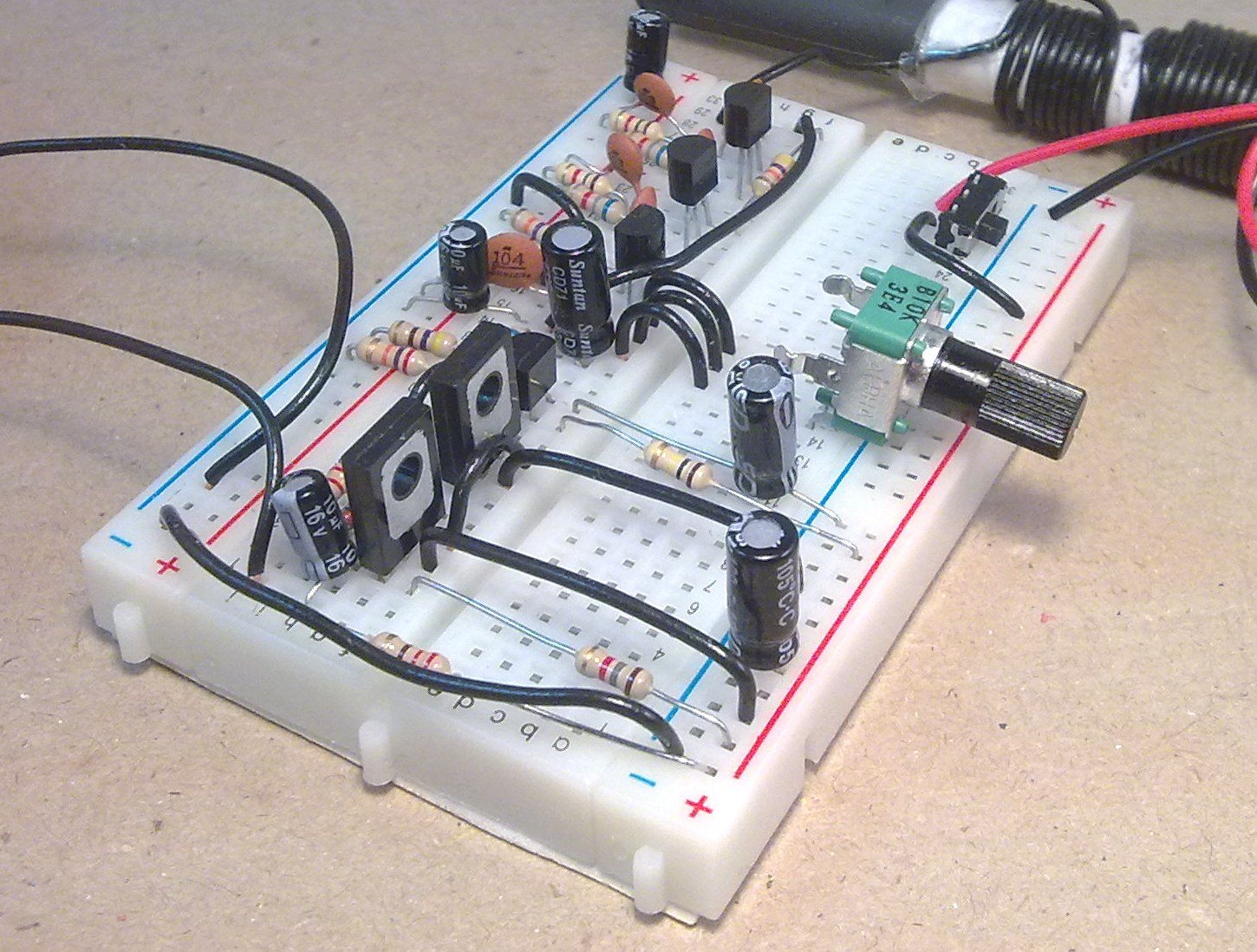

          Transistor Radio Detail View North-EastMediumwave

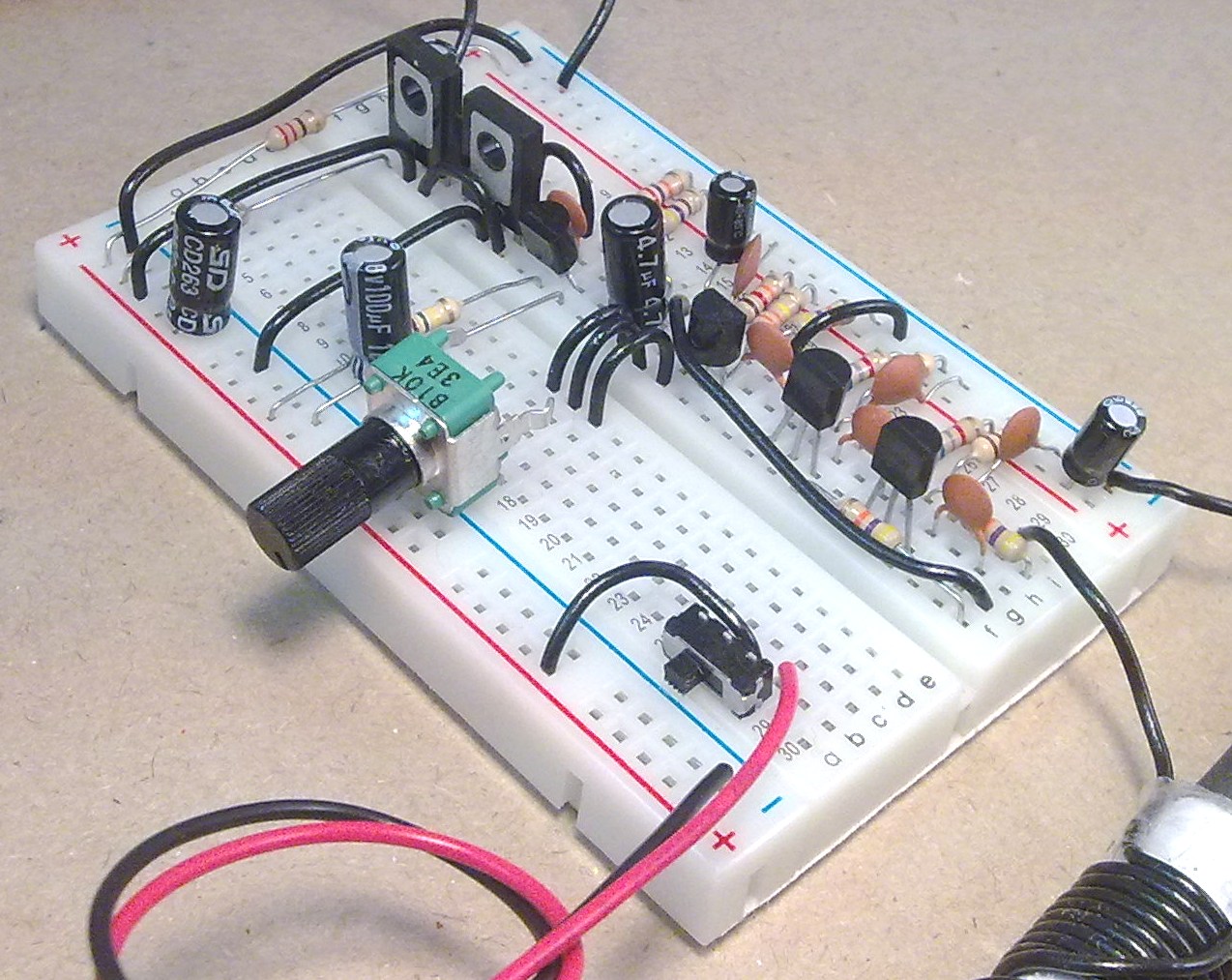

          Radio Breadboard Kit Detail View North-West

Transistor Radio Kit Detail View
          South West
